6.2.4. Edit a plot

Previous6.2.3 View and Edit the Plan ReportNext6.2.5 Add a plot to the existing project

Last updated 6 months ago

Was this helpful?

Much like the plan editing feature, users can also edit a plot saved within the project. This functionality enables the editing of a plot directly on the map. Users can choose a particular plot from the list and proceed with the editing process.

To make changes to an existing plot, access the following screen and select the "Edit" button to modify the plot.

After tapping the "Edit Plot" button, the user will be prompted to choose the field plot creation method from the available options. the following screen will appear on the user’s device.

To Edit a field plot, select one of the following options by tapping on it:

• RC/Mobile

• Drone

• Map

Once you select a method, the plot edit screen will open on your device, allowing you to adjust the plot using the chosen method.

On this screen, you can view and modify the field plot before proceeding with field operations. The map view displays a satellite image of the field, with the plot area marked by a yellow boundary. Various options allow you to adjust the plot as needed:

  • Add Point: Tap to add more waypoints to refine the plot boundaries.

  • Clear All: Removes all waypoints and obstacles. A confirmation prompt will appear.

As shown in the following Screen.

  • Save: Saves the current plot configuration.

  • Create Plan: Proceeds to the plan creation stage for field operations.

The Obstacle and Plot toggles provide additional options to mark obstacles within the plot or return to plot-editing mode. The top status bar displays real-time metrics, ensuring users can monitor device conditions for optimal field operation safety

1. Edit Obstacle

This feature enables the user to mark any obstacles on the provided plot, if necessary. Simply follow the on-screen instructions for guidance. Once the user marked an obstacle, save the plot using the "Save Obs" button, as illustrated in the image below:

Step 1: Access the Obstacle screen from the plot view, as depicted in the screen displayed below.

To edit a "Polygon" type of obstacle, follow these steps:

  1. Select the waypoint the user wishes to edit, and it will turn green in color.

  2. The Waypoint Editor widget will become visible on the screen, allowing the user to move the waypoint using the small arrows provided in the east, west, north, and south directions.

  3. After making the desired adjustments, click the "OK" button.

To delete a selected waypoint, simply choose the waypoint and press the delete button on the Waypoint Widget.

To edit a "Circle" type obstacle, perform the following:

  1. Select a point on the edge of the circle obstacle.

  2. Move the point inward to reduce the size of the obstacle or outward to expand it.

  3. Once the user has made the necessary changes, click the "OK" button to confirm.

Once the user has completed all the updates to the plot, the user should save the changes by clicking on the “Save” button.

2. Delete Obstacle

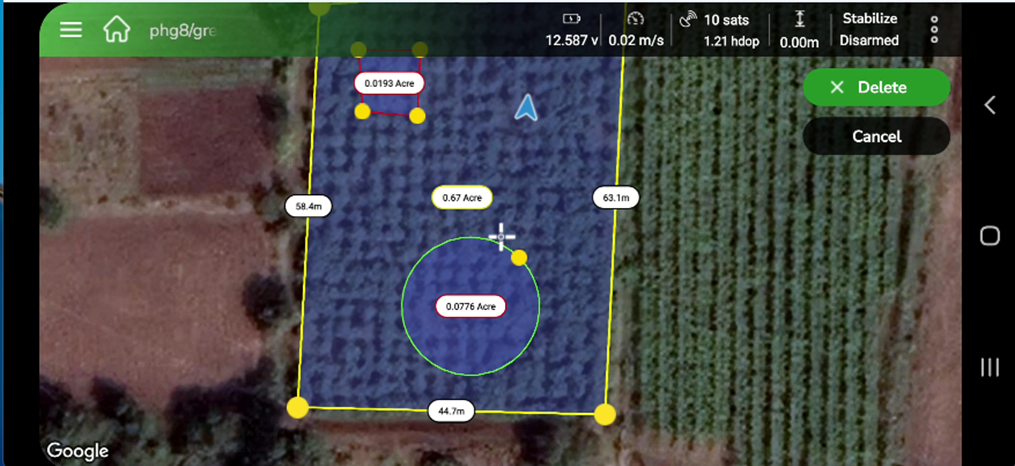

To remove an obstacle from the plot, simply tap on the edge of the obstacle. This action will mark the obstacle for deletion, indicated by the edge turning green, and a delete button will appear, as illustrated in the following screen.

To delete the obstacle that has been marked for removal, click on the "Delete" button.

📝 Note: 🚫 Deleting obstacles is not possible from the Plan View. To remove an obstacle, please switch to the Plot View.

3. Save Edited Plot:

Save all the modifications by clicking the "Save" button. When saving a plot, the user will be prompted to choose between "Create new Plot" or "Save into Existing Plot," as demonstrated in the following screen:

Users can now generate a plan by following the steps outlined in the "" section.

Creating a Plan
Edit plot
Select the Field plot creation method
Edit plot view
Clear plot
Edit obstacle
Delete obstacle
Save edited plot
