Field Plotting with Google Maps:
Create field plots directly on Google Maps for enhanced accuracy.
Use intuitive features like ‘Add Point’, ‘Clear’, and ‘Save’ to customize your plot.
The interactive map pointer and dynamic background ensure precise and easy field plotting.
Step 1: After selecting the "Google Maps" option for plot creation using Google Maps, the following screen will appear on the user’s device.

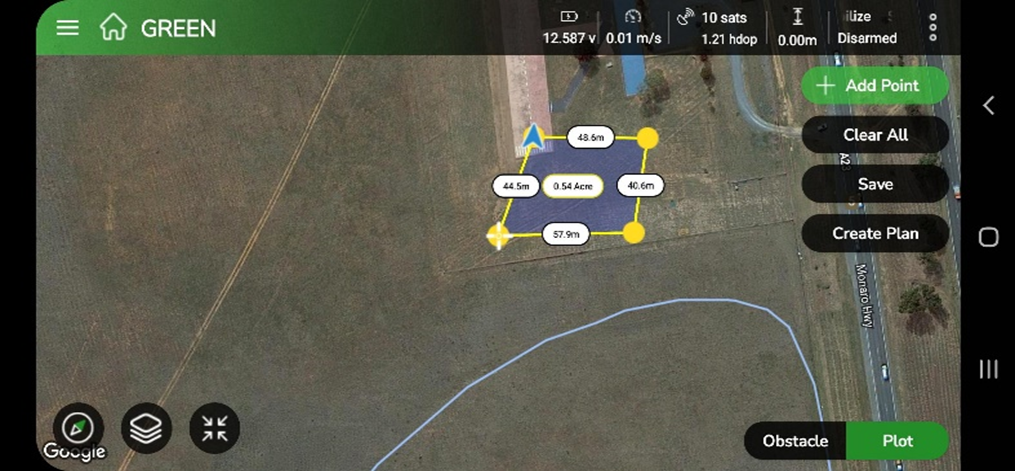

Step 2: When the user taps the "+Add point" button on the screen, it will mark a point on the map at the current location. Users can continue adding multiple points to the user’s plot by navigating to the next location on the map, as demonstrated in the screen displayed on the user’s device.
By default, this view or screen displays the process of plotting points for a plot using Google Maps. Additionally, the screen offers the following options for users:
1. Clear All: By tapping "Clear All," the user can remove all the points from the map, effectively erasing them.
2. Save: To save the plot the user has created, simply tap the "Save" button, which will store the plot for future use.
3. Create a Plan: The user can use this option to generate a plan from the user’s plot. However, it's important to remember that the user must first save the user’s plot. To proceed with creating a plan, tap "Create Plan."
4. Obstacle: This option allows the user to add obstacles to the user’s plot. Tap "Obstacle" to insert obstacles into the user’s plot, including polygon and circle types.
